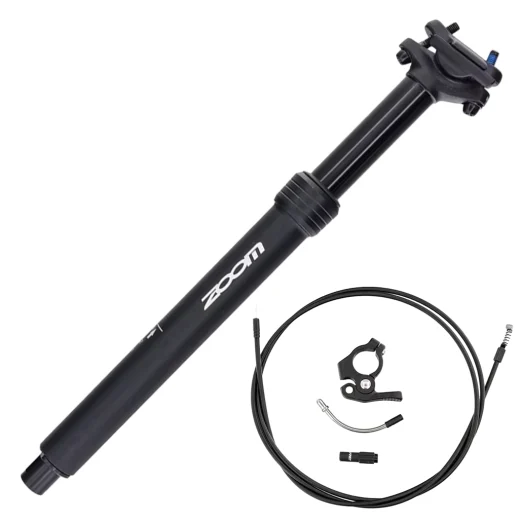

27.2 Dropper Post Internal Routing 80mm Travel

Adjust Your Saddle Height for Changing Terrain

This 27.2 dropper post internal routing model provides 80mm of saddle height adjustment for changing terrain. Lower your saddle for more room to move on descents, then raise it for seated pedalling. Whether you ride North Island bush tracks or South Island gravel routes, it offers practical saddle adjustment for a compatible bike.

Key Features

• 80mm travel: Adjust your saddle height for climbs, descents and uneven sections.
• Internal cable routing: The cable connects at the base of the post and runs through a compatible frame.
• Sealed hydraulic mechanism: Cable actuation controls the hydraulic dropper mechanism.
• 7050 aluminium alloy construction: Finished in sandblasted black.

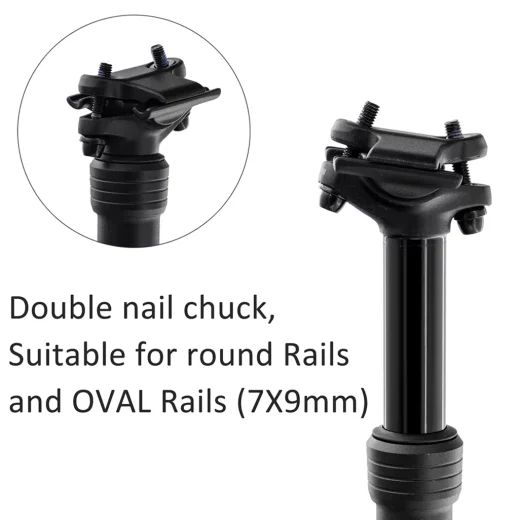

• Two-bolt saddle clamp: Accepts round saddle rails and 7 × 9mm oval rails.
• Adjustable saddle angle: The saddle cradle adjusts from -5° to +18°.

Specifications of 27.2 Dropper Post with Internal Routing

• Seatpost diameter: 27.2mm
• Travel: 80mm
• Overall length: 370mm
• Minimum insertion depth: 100mm
• Cable routing: Internal
• Mechanism: Sealed hydraulic system with cable actuation
• Material: 7050 aluminium alloy
• Cable length: 150cm
• Listed weight: 480g + 100g
• Saddle cradle angle: -5° to +18°
• Saddle clamp: Two-bolt design
• Saddle rail compatibility: Round rails and 7 × 9mm oval rails
• Finish: Sandblasted black
• Listed applications: Compatible mountain bikes, gravel bikes, cyclocross bikes and road bikes

Benefits

1. More room to move: Lower the saddle to give yourself extra space to shift your body on descents and uneven tracks.
2. Adapt to mixed terrain: Adjust your saddle height as your NZ ride moves between gravel climbs and rougher sections.
3. Internal cable placement: Route the operating cable through a frame designed for an internally routed dropper.
4. Adjustable saddle position: Use the two-bolt clamp and cradle angle adjustment to set your preferred saddle position.

Common Questions

• Q: Will this dropper post fit my bike?
  A: Your bike must accept a 27.2mm seatpost and support internal dropper cable routing. Check available insertion depth, clearance for the base actuator and cable, and your required saddle height before ordering.
• Q: What is the minimum insertion depth?

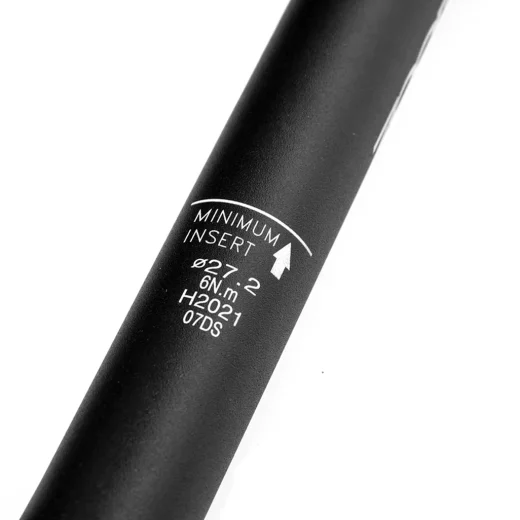

  A: The post requires at least 100mm of insertion. Keep the minimum insertion mark inside the frame and follow any greater insertion requirement specified by your frame manufacturer.
• Q: How much saddle adjustment does it provide?

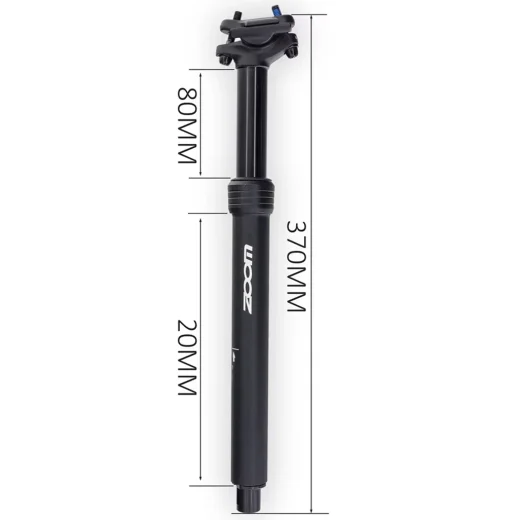

  A: This post provides 80mm of travel and has a listed overall length of 370mm.
• Q: Is it cable-operated or hydraulic?

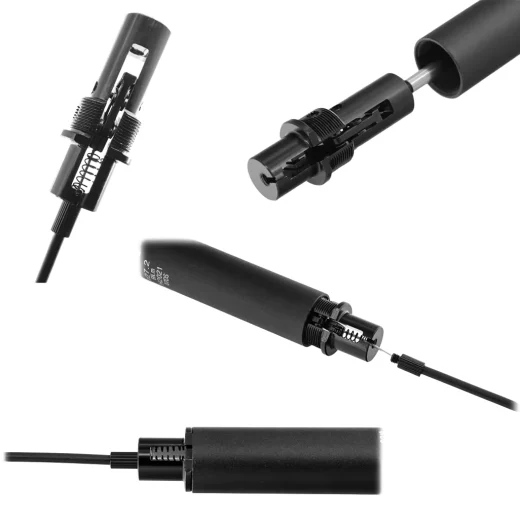

  A: It uses a cable to operate a sealed hydraulic mechanism. The operating cable connects at the bottom of the post.
• Q: Which saddle rails are compatible?
  A: The two-bolt clamp is listed as suitable for round rails and 7 × 9mm oval rails. Check your saddle manufacturer's clamp requirements before fitting.
• Q: Can I fit it to a gravel bike?

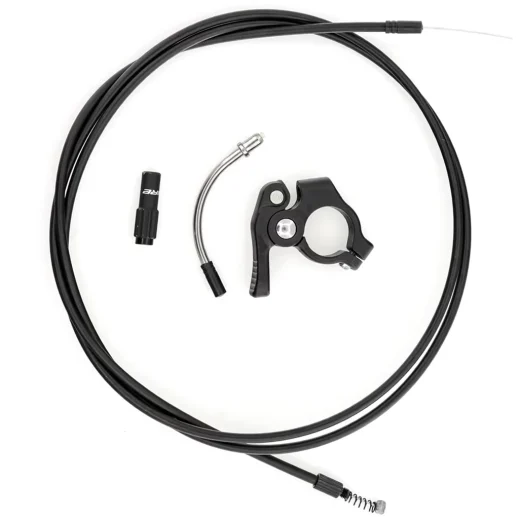

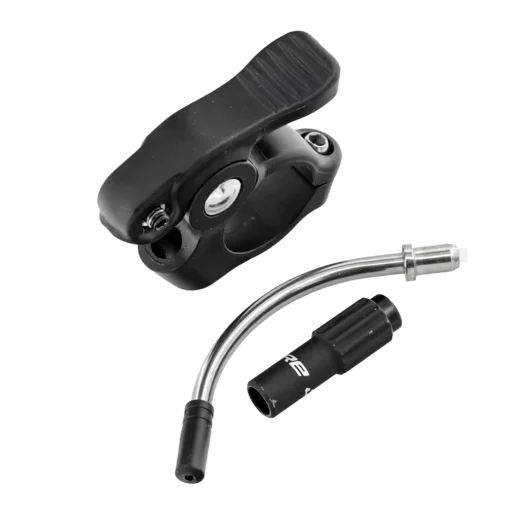

  A: Yes, if your gravel bike accepts a 27.2mm seatpost and provides suitable internal routing and installation clearance. Also check remote compatibility with your handlebar setup, especially if you use drop bars.

Summary

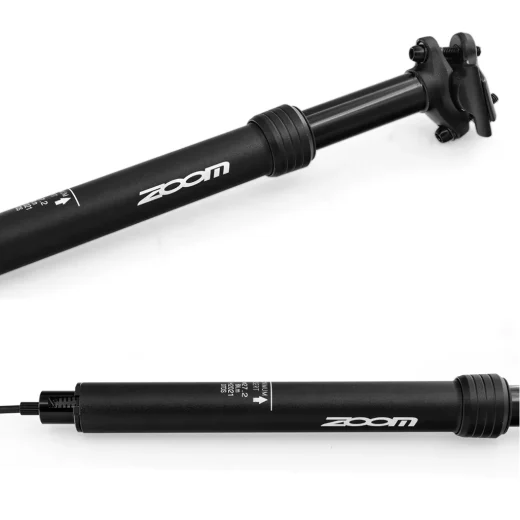

This 27.2mm internally routed dropper post combines 80mm travel, 7050 aluminium alloy construction and an adjustable two-bolt saddle clamp. For NZ riders with a compatible mountain or gravel bike, it provides saddle height adjustment for changing terrain. Check frame fit, cable routing and saddle height before ordering, and allow a minimum insertion depth of 100mm.
