Carbon Seatpost 30.9mm 400 mm Lightweight Only 168 grams
Secure checkout with trusted providers.
A carbon seatpost reduces bike weight while improving ride comfort. This 30.9 mm seatpost features a matte black finish for a sleek look.
Designed for Performance and Strength
Made from high-quality carbon fibre, this seat post offers strength without excess weight. The material absorbs vibrations, providing a smoother ride.
Universal Fit with Adjustable Offset
With a 20 mm offset, this seat post helps fine-tune riding position for better pedalling efficiency. It fits most bike frames and saddles.
Secure Mounting System

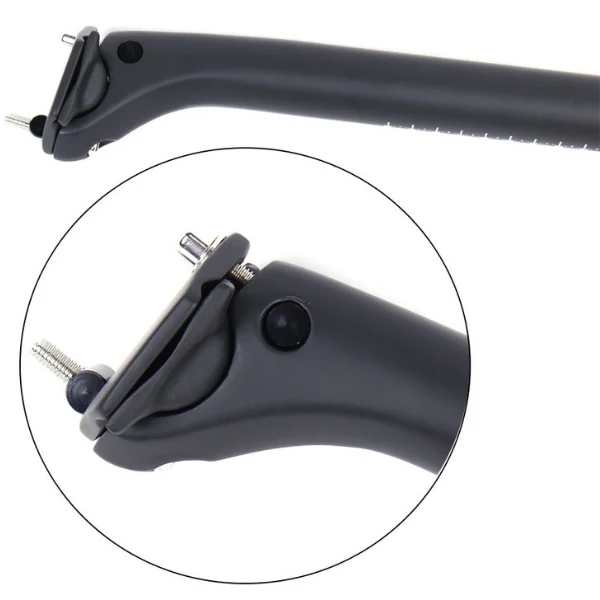

The included aluminium mounting head ensures a secure saddle attachment. It supports 7 mm round alloy rails and multiple carbon rail sizes.
Ideal for New Zealand Riders
New Zealand’s rugged trails and open roads demand reliable components. A lightweight carbon fibre seatpost enhances control and efficiency on varied terrain.

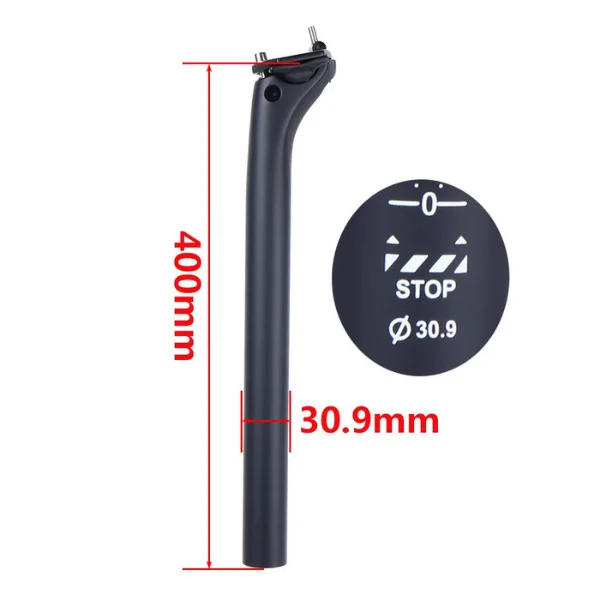

Carbon Seatpost - Specifications
- Brand: Adsports
- Model: CSP309B-400
- Material: Carbon fibre
- Finish: Matte black
- Offset: 20 mm
- Diameter: 30.9 mm
- Length: 400 mm
- Weight: 168 grams (including mounting kit)
- Compatible Rails: 7 mm round alloy, 8x8.5 mm, 7x9 mm, 7x10 mm carbon fibre
- Recommended Torque: ≤ 5.1 NM
Carbon Seat Post - Key Benefits
- Reduces bike weight for improved efficiency.
- Carbon fibre absorbs road vibrations for a smoother ride.
- Matte black finish provides a clean, modern look.
- Adjustable offset allows fine-tuning of saddle position.
- Secure aluminium mount ensures saddle stability.
- Designed for road and mountain biking performance.

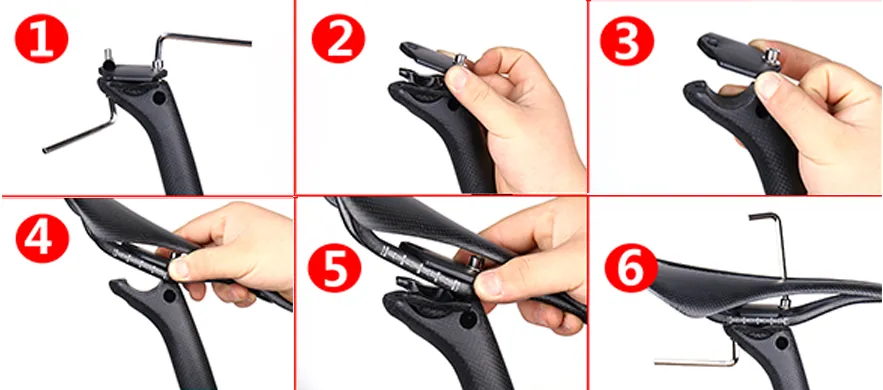

How to Install your Saddle onto this Carbon Seatpost
Step 1: Loosen the Clamp Bolts
Use a hex key to loosen the bolts on the seatpost clamp. Do not remove them completely; just loosen them enough to release the top clamp.
Step 2: Remove the Upper Clamp Piece
Carefully lift the upper clamp piece off the seatpost. This will allow space to position the saddle rails.
Step 3: Prepare the Saddle Rails
Align the saddle rails with the lower clamp section on the seatpost. Ensure that the rails sit securely in the designated grooves.
Step 4: Position the Upper Clamp Piece
Place the upper clamp piece back over the saddle rails. Make sure the rails are evenly positioned before proceeding.
Step 5: Insert and Lightly Tighten the Bolts
Reinsert the bolts and tighten them slightly with a hex key. Do not fully tighten yet; you may need to adjust the saddle angle.
Step 6: Adjust and Secure the Saddle
Adjust the saddle position to your preferred angle. Once positioned correctly, tighten the bolts evenly to the recommended torque setting (≤ 5.1 NM). Ensure both sides are tightened evenly to prevent damage.

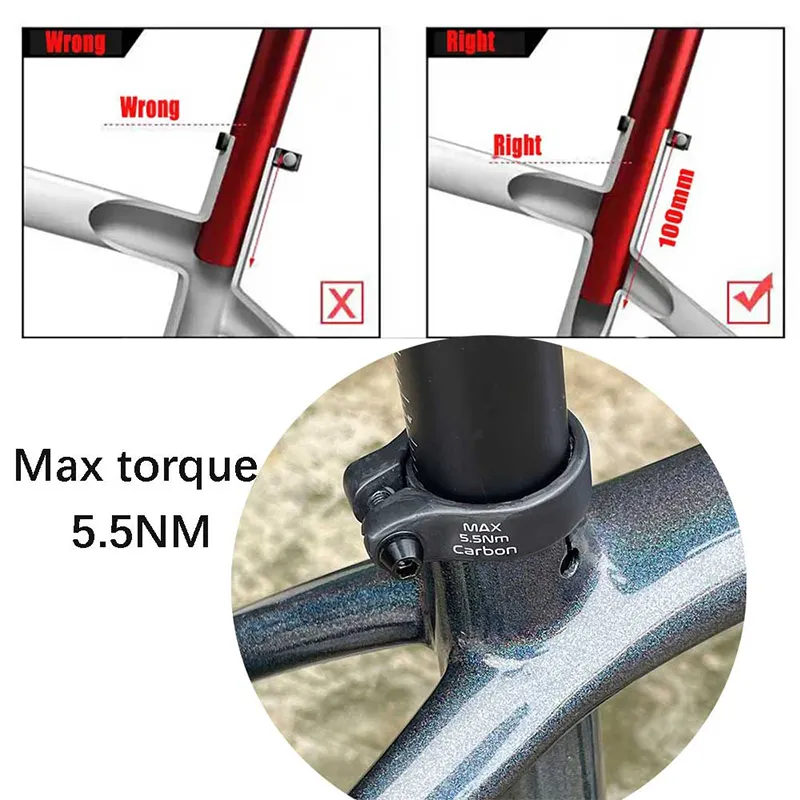

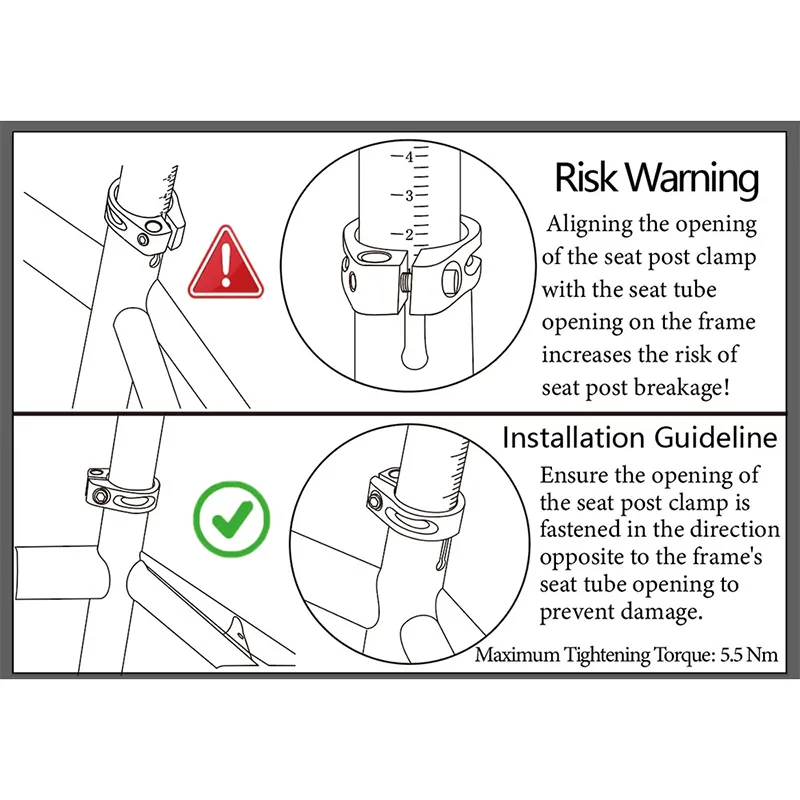

Important Notes
To prevent damage, avoid over-tightening bolts. The maximum recommended torque is 5.1 NM.

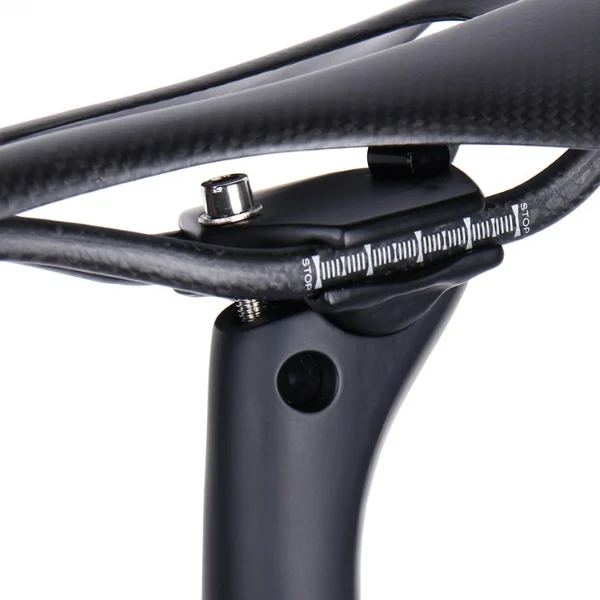

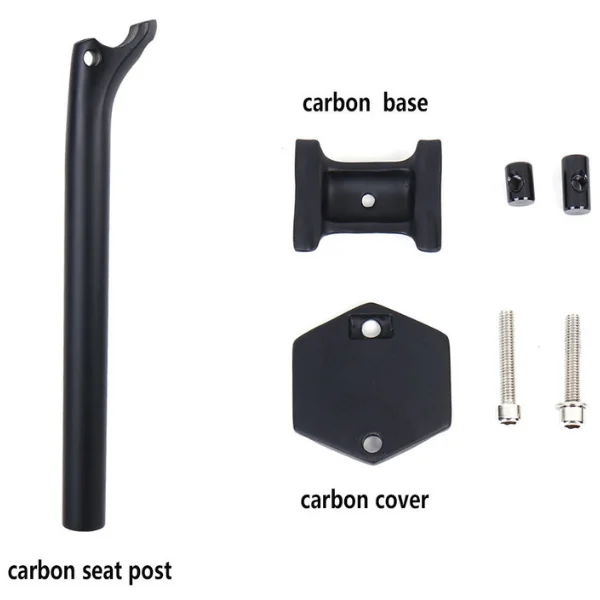

Included with this Carbon Seatpost is an Aluminum mountain head for attaching your bikes seat. This mounting kit will fit most bike seats.
- Check that the saddle is aligned properly before fully tightening.
- Do not overtighten the bolts to avoid damaging the carbon fibre seatpost.
- Use a torque wrench to achieve the correct clamping force.
Following these steps ensures a secure and stable saddle setup, optimising comfort and performance on your bike.
